Gibraltar

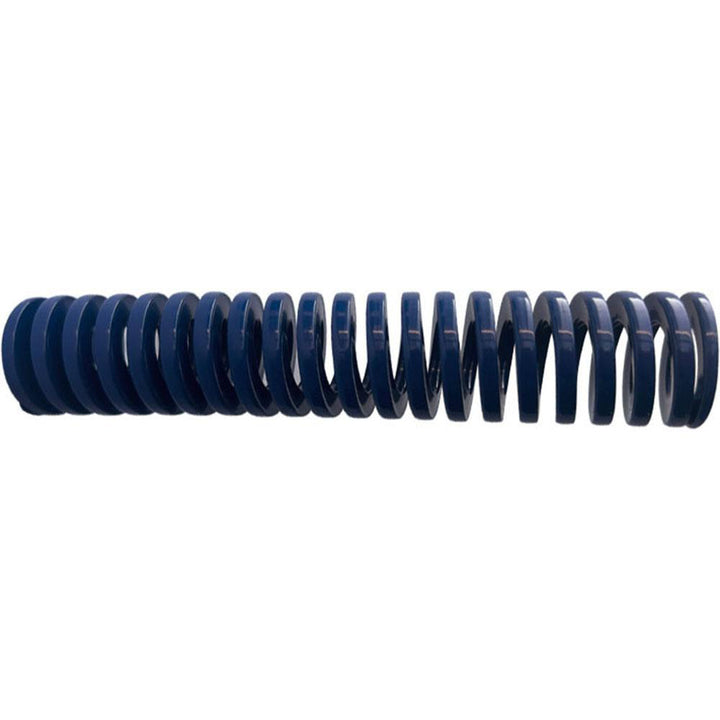

Die Spring - Gibraltar DCIM20-127
MFR# DCIM20-127
$6.33List $7.95
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM20-127 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load2.09
Duty ratingMedium-Duty
Free length in5
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.0900
Maximum deflection load lb182.00
Maximum deflection load n809.90
Rod diameter in3/8
Spring rate87.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.0866
Wire shapeTrapezoidal
