Gibraltar

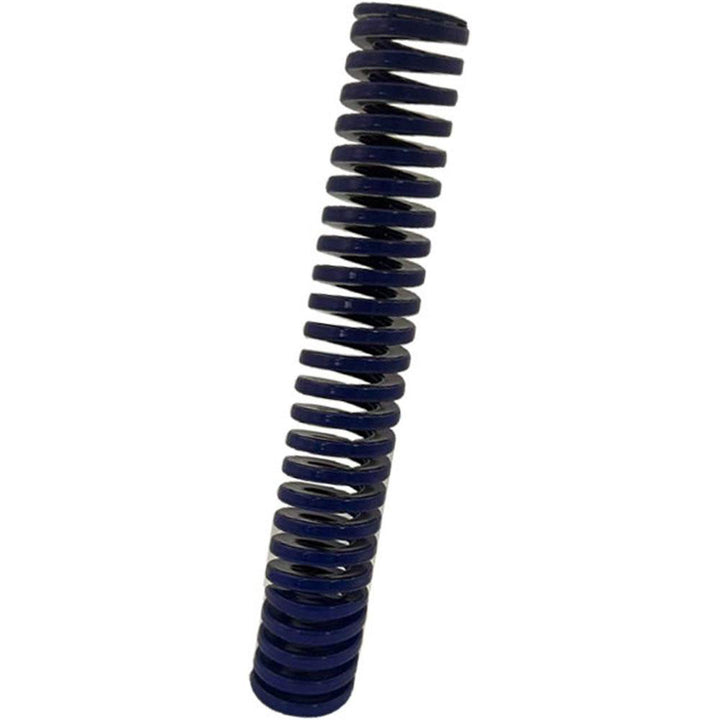

Die Spring - Gibraltar DCIM20-152
MFR# DCIM20-152
$7.22List $9.07
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM20-152 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load2.52
Duty ratingMedium-Duty
Free length in6
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.5200
Maximum deflection load lb184.00
Maximum deflection load n818.80
Rod diameter in3/8
Spring rate73.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.5354
Wire shapeTrapezoidal
