Gibraltar

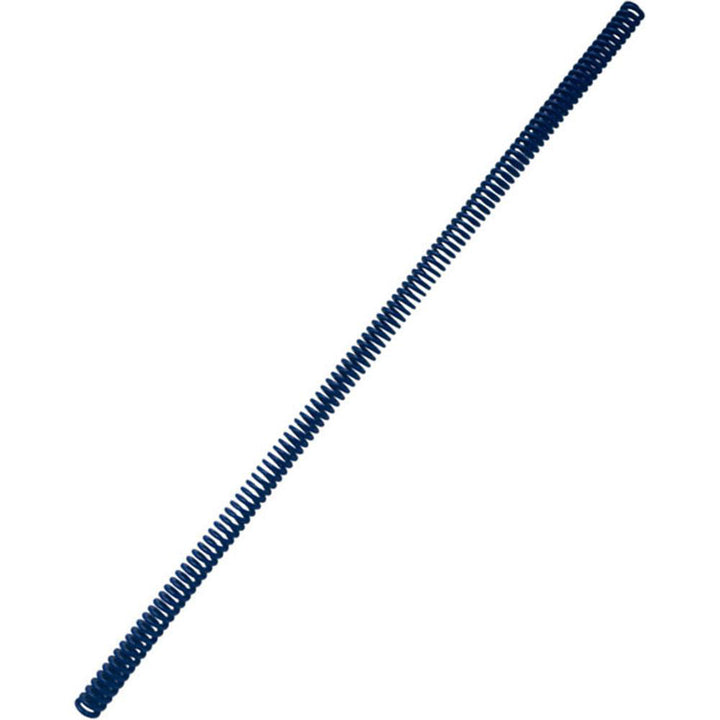

Die Spring - Gibraltar DCIM20-305
MFR# DCIM20-305
$15.59List $19.24
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM20-305 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load5.2
Duty ratingMedium-Duty
Free length in12
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection5.2000
Maximum deflection load lb190.00
Maximum deflection load n845.50
Rod diameter in3/8
Spring rate37.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load5.1890
Wire shapeTrapezoidal
