Gibraltar

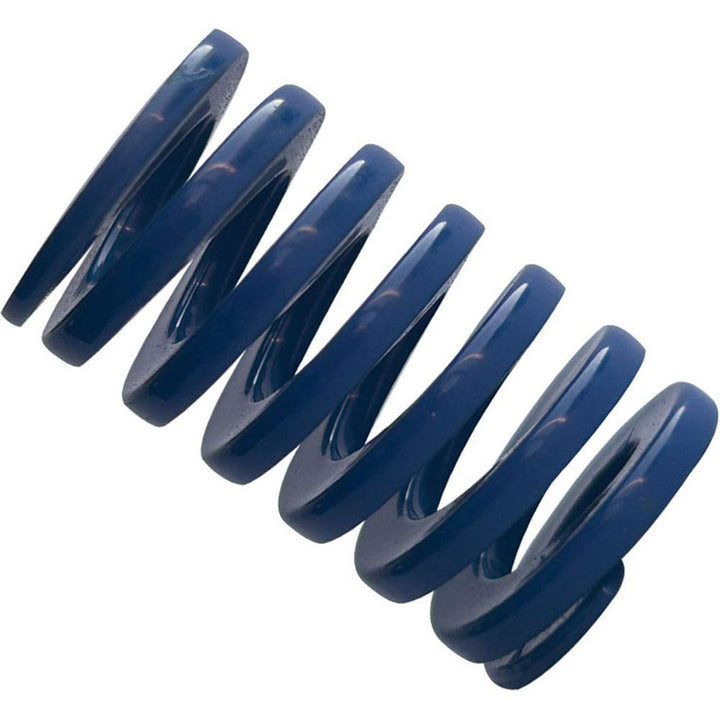

Die Spring - Gibraltar DCIM20-32
MFR# DCIM20-32
$3.01List $3.77
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM20-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.53
Duty ratingMedium-Duty
Free length in1-1/4
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5300
Maximum deflection load lb205.00
Maximum deflection load n912.25
Rod diameter in3/8
Spring rate388.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5177
Wire shapeTrapezoidal
