Gibraltar

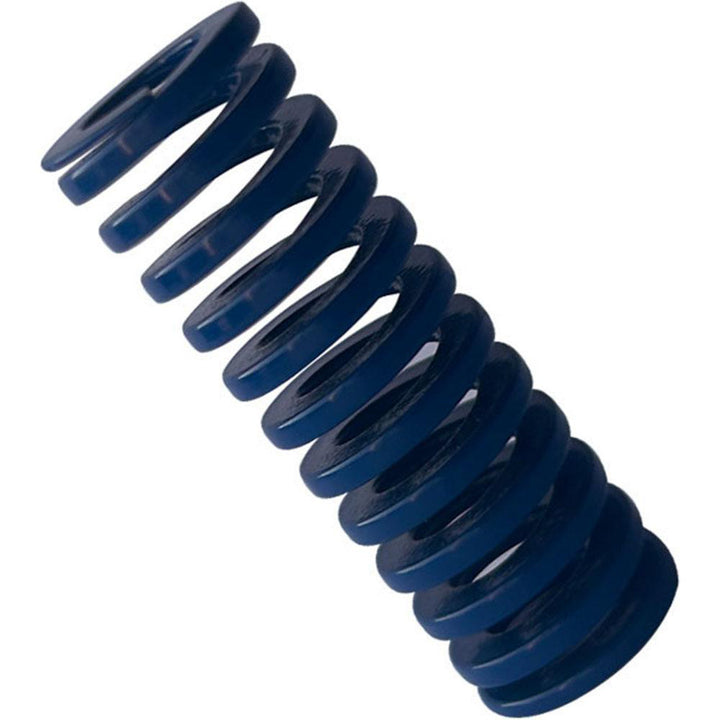

Die Spring - Gibraltar DCIM20-44
MFR# DCIM20-44
$3.47List $4.28
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM20-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.71
Duty ratingMedium-Duty
Free length in1-3/4
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.7100
Maximum deflection load lb189.00
Maximum deflection load n841.05
Rod diameter in3/8
Spring rate266.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.7264
Wire shapeTrapezoidal
