Gibraltar

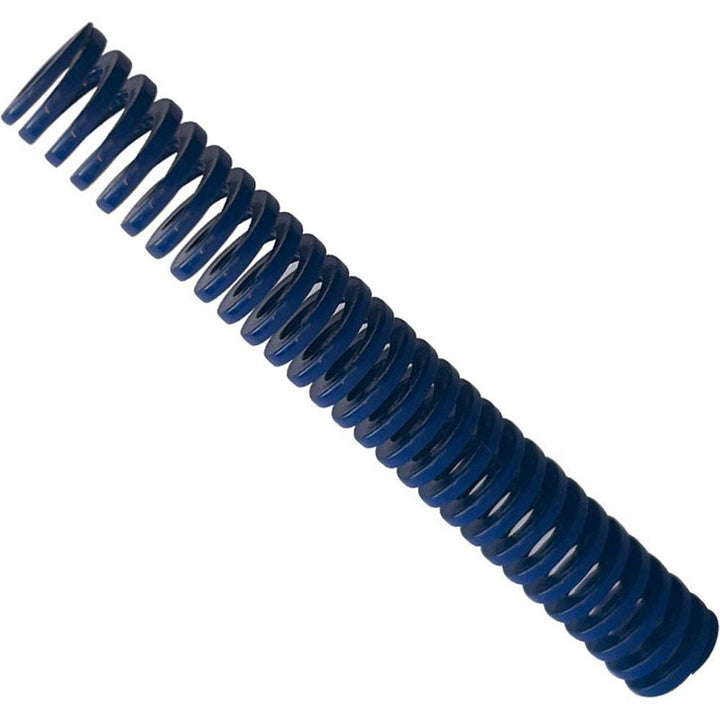

Die Spring - Gibraltar DCIM20-89
MFR# DCIM20-89
$4.62List $5.80
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM20-89 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load1.46
Duty ratingMedium-Duty
Free length in3-1/2
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.4600
Maximum deflection load lb184.00
Maximum deflection load n818.80
Rod diameter in3/8
Spring rate126.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.4528
Wire shapeTrapezoidal
