Gibraltar

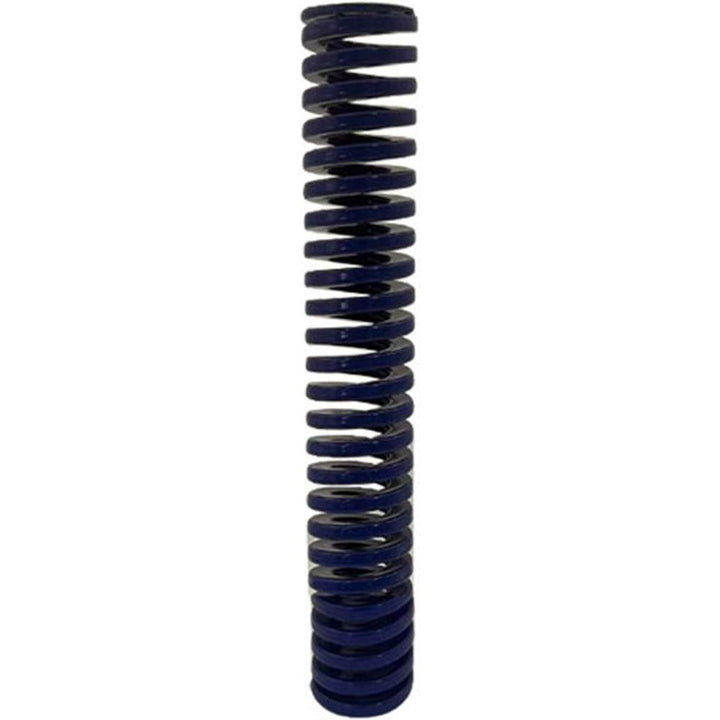

Die Spring - Gibraltar DCIM25-152
MFR# DCIM25-152
$8.94List $11.22
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM25-152 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load2.56
Duty ratingMedium-Duty
Free length in6
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.5600
Maximum deflection load lb347.00
Maximum deflection load n1544.15
Rod diameter in1/2
Spring rate136.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.5748
Wire shapeTrapezoidal
