Gibraltar

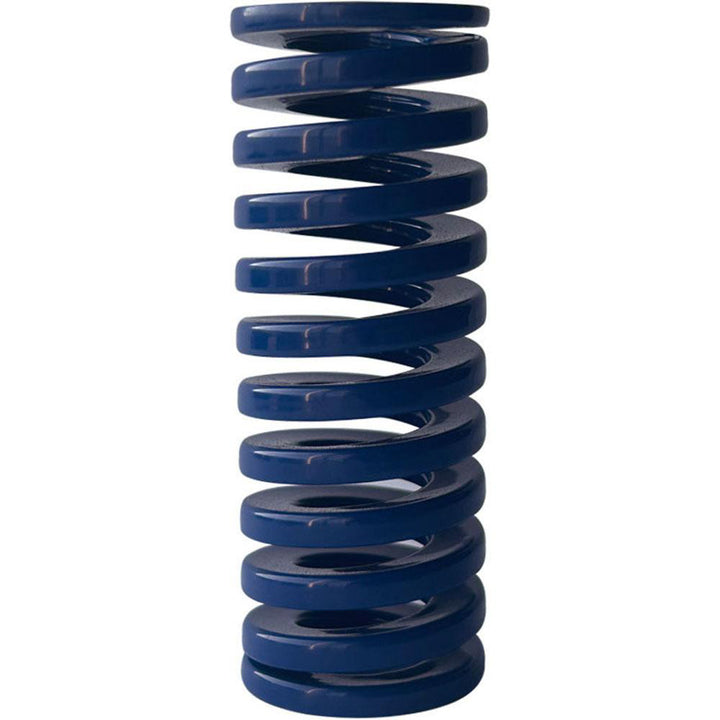

Die Spring - Gibraltar DCIM25-51
MFR# DCIM25-51
$4.29List $5.29
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM25-51 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.83
Duty ratingMedium-Duty
Free length in2
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.8300
Maximum deflection load lb354.00
Maximum deflection load n1575.30
Rod diameter in1/2
Spring rate426.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.8228
Wire shapeTrapezoidal
