Gibraltar

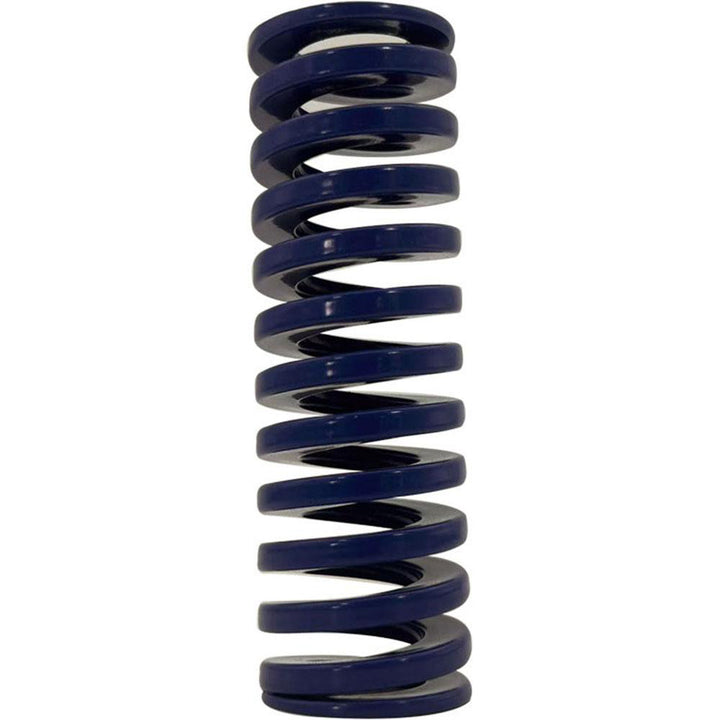

Die Spring - Gibraltar DCIM25-76
MFR# DCIM25-76
$5.30List $6.65
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM25-76 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load1.26
Duty ratingMedium-Duty
Free length in3
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.2600
Maximum deflection load lb353.00
Maximum deflection load n1570.85
Rod diameter in1/2
Spring rate280.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.2717
Wire shapeTrapezoidal
