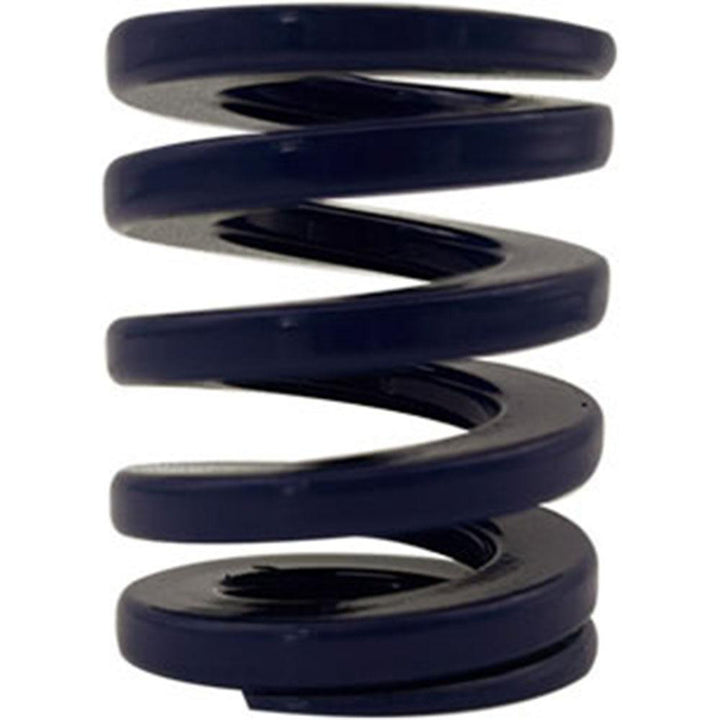

Die Spring - Gibraltar DCIM32-38
MFR# DCIM32-38
$5.41List $6.80
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM32-38 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.69
Duty ratingMedium-Duty
Free length in1-1/2
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6900
Maximum deflection load lb653.00
Maximum deflection load n2905.85
Rod diameter in5/8
Spring rate953.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6890
Wire shapeTrapezoidal
