Gibraltar

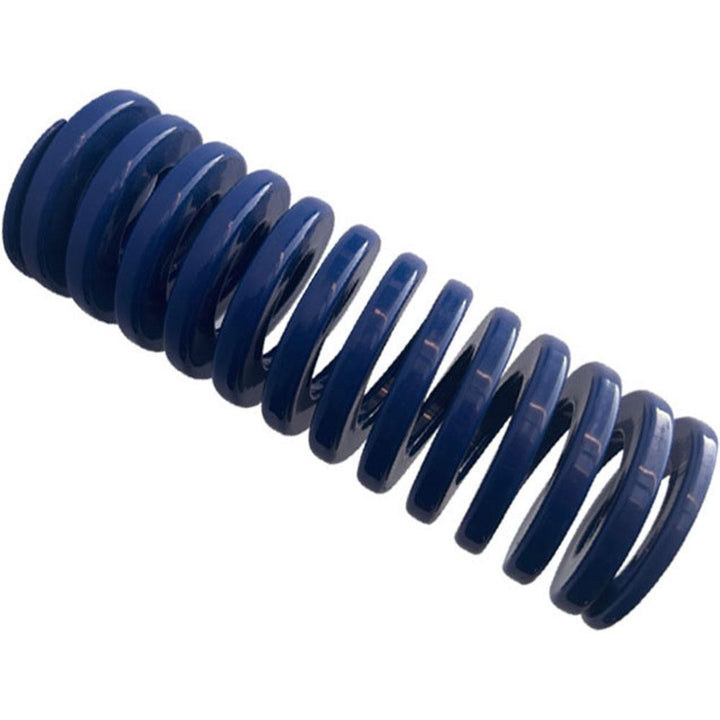

Die Spring - Gibraltar DCIM40-127
MFR# DCIM40-127
$16.67List $20.57
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM40-127 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load2.05
Duty ratingMedium-Duty
Free length in5
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.0500
Maximum deflection load lb714.00
Maximum deflection load n3177.30
Rod diameter in3/4
Spring rate348.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.0512
Wire shapeTrapezoidal
