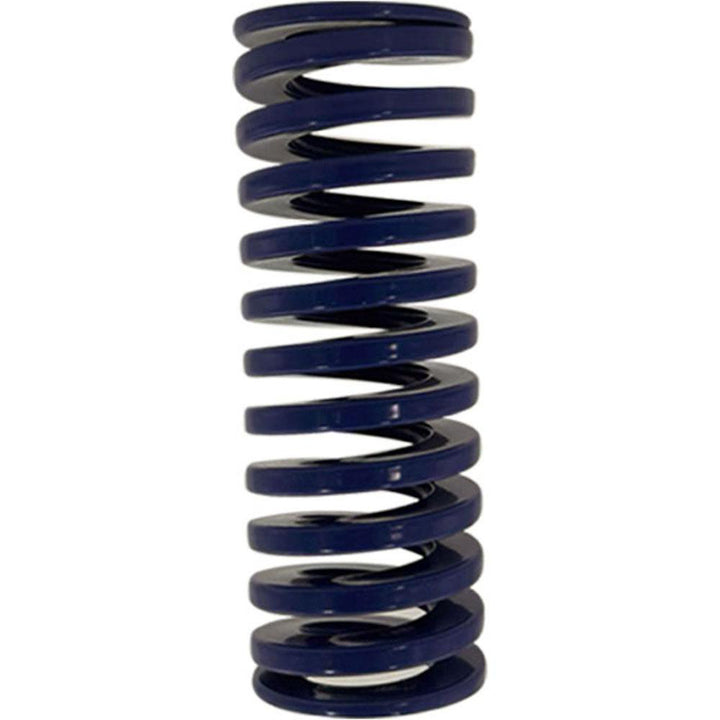

Die Spring - Gibraltar DCIM40-89
MFR# DCIM40-89
$12.40List $15.29
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM40-89 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load1.43
Duty ratingMedium-Duty
Free length in3-1/2
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.4300
Maximum deflection load lb725.00
Maximum deflection load n3226.25
Rod diameter in3/4
Spring rate509.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.4213
Wire shapeTrapezoidal
