Gibraltar

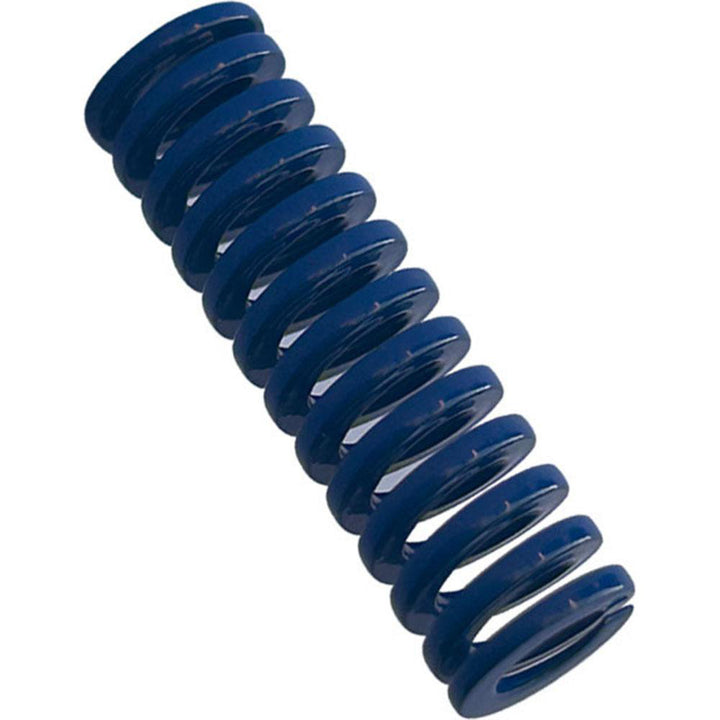

Die Spring - Gibraltar DCIM50-178
MFR# DCIM50-178
$32.33List $40.58
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM50-178 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load2.96
Duty ratingMedium-Duty
Free length in7
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.9600
Maximum deflection load lb1114.00
Maximum deflection load n4957.30
Rod diameter in1
Spring rate376.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.9528
Wire shapeTrapezoidal
