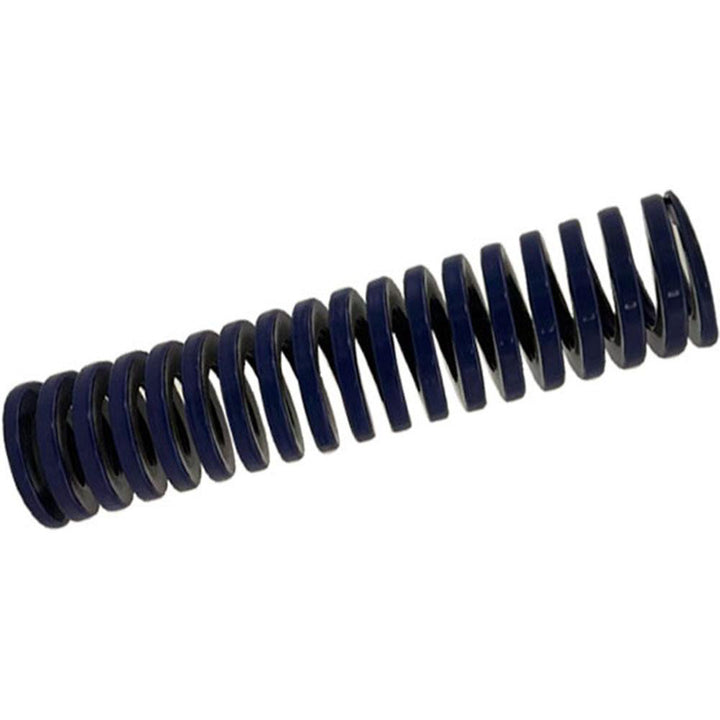

Die Spring - Gibraltar DCIM63-152
MFR# DCIM63-152
$47.54List $59.68
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM63-152 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load2.61
Duty ratingMedium-Duty
Free length in6
Hole diameter in2-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.6100
Maximum deflection load lb1976.00
Maximum deflection load n8793.20
Rod diameter in1-1/2
Spring rate756.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.6299
Wire shapeTrapezoidal
