Gibraltar

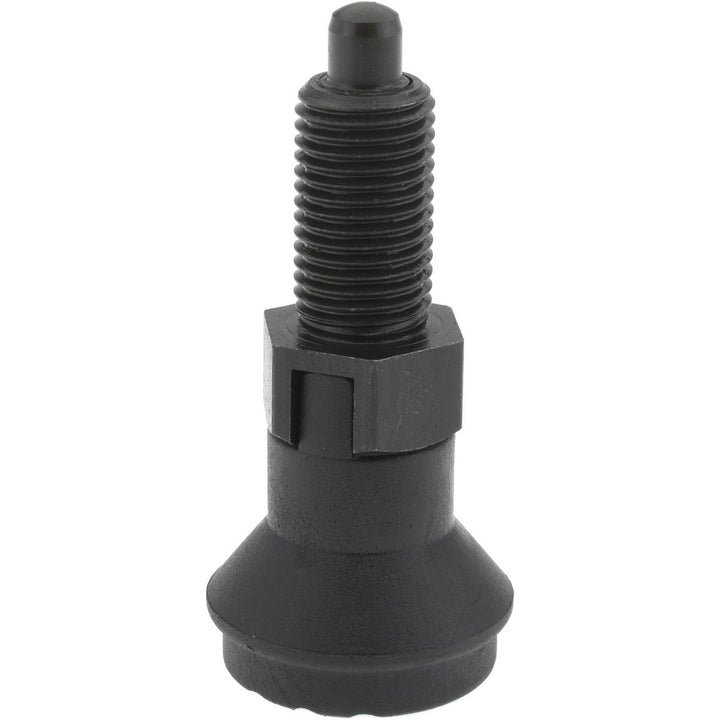

3/8-24 in Spring Plunger - Gibraltar IPG-108-G
MFR# IPG-108-G
$23.62List $29.65
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar IPG-108-G is a 3/8-24 in steel spring plunger.
Specifications
Body length0.6693
Distance across nut flats0.5118
Final end force12N
Final end force n12.00
FinishBlack
Indexing plunger style codeC
Initial end force5N
Initial end force n5.00
Knob diameter0.8268in; 21mm
Knob diameter (mm)21.00
Lock nutNo
MaterialSteel
Nut height0.2756
Overall length1.8504
Plunger diameter0.1969in; 5mm
Plunger projection0.1969
Plunger typeLockout
Thread length0.5906in; 15mm
Thread size3/8-24 in
Tolerance-0.001 in
