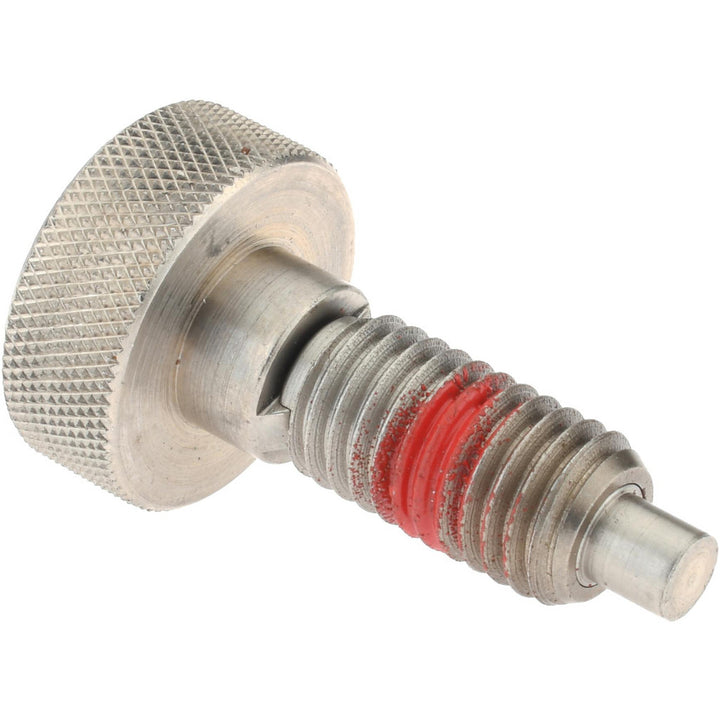

M12x1.75 Spring Plunger - Gibraltar MSKNL-4-PT-G
MFR# MSKNL-4-PT-G
$25.27List $31.72
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar MSKNL-4-PT-G is a M12x1.75 stainless steel spring plunger.
Specifications
Body length1.1400
Final end force44.5N; 10lb
Final end force lb10.00
Final end force n44.50
Head diameter0.984in; 25mm
Head height0.315in; 10mm
Head shoulder height0.6300
Initial end force4.45N; 1lb
Initial end force lb1.00
Initial end force n4.45
Knob styleKnurled
Length under head shoulder0.9050
Locking elementYes
MaterialStainless Steel
Maximum plunger diameter0.2360
Plunger diameter tolerance+0.000/-0.001
Plunger length1.5350
Plunger projection0.2360
Plunger typeNon-Locking
Thread length0.905in; 23mm
Thread sizeM12x1.75
