Greenfield Threading
5/8-11 UNC High-Speed Steel Standard Tap - Greenfield Threading 306949
MFR# 306949Series 3105
$48.64List $62.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
Description

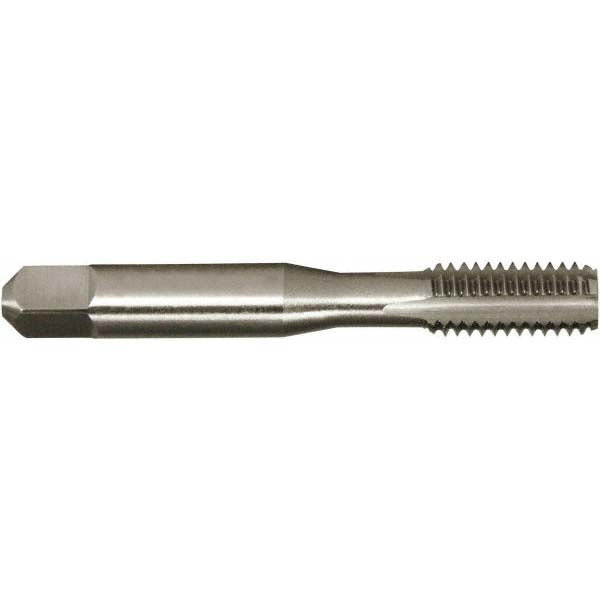

The Greenfield Threading 306949 is a 5/8-11 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit3; 3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum Alloy; Carbon Steel; Cast Iron; Copper Alloy; Graphite; Carbon; High-Temperature Alloy; Magnesium; Plastic; Stainless Steel; Titanium; Tool Steel; Zinc Alloy
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.4800
Square size0.3600
Tap typeStandard
Threads per inch11
Thread directionRight Hand
Thread length in1-13/16
Thread limitH3
Thread size in5/8-11
Thread standardUNC
