Greenfield Threading

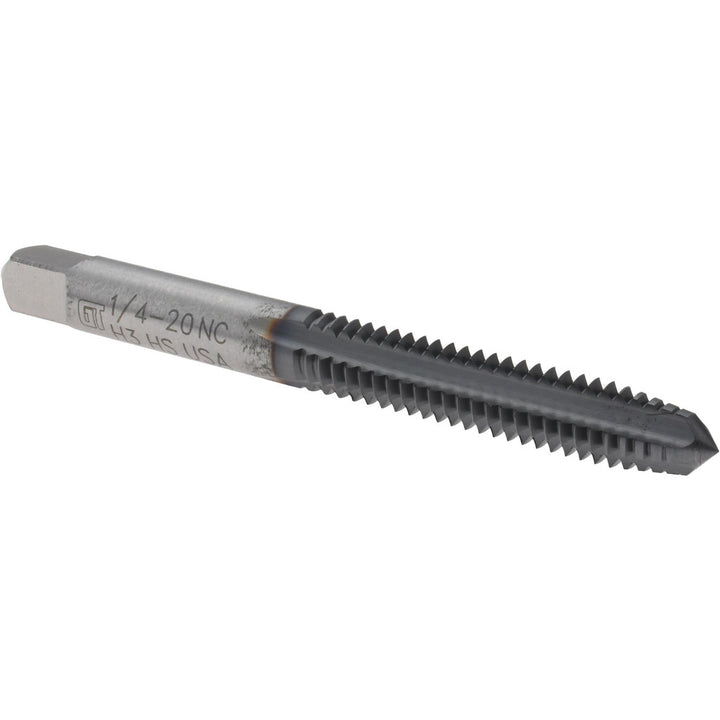

1/4-20 UNC High-Speed Steel Standard Tap, TiCN - Greenfield Threading 330048
MFR# 330048Series HTGP
$13.35List $17.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-20
CoatingTiCN
Description
The Greenfield Threading 330048 is a 1/4-20 UNC High-Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Stainless Steel
Material gradeM2
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size0.3125
Tap typeStandard
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-20
Thread standardUNC
