#10-24 UNC High-Speed Steel Tap - Greenfield Threading 367313

Greenfield Threading

#10-24 UNC High-Speed Steel Tap - Greenfield Threading 367313

MFR# 367313Series 5155

$23.83List $30.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Thread size#10-24

Description

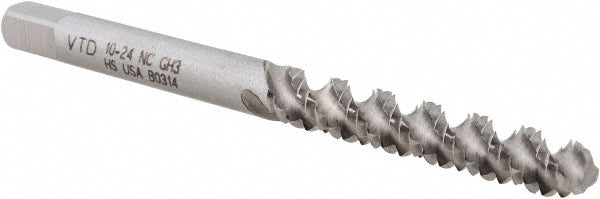

The Greenfield Threading 367313 is a #10-24 UNC High-Speed Steel tap. 3 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2/2B/3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle49
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum Alloy; Carbon Steel; Cast Iron; Copper Alloy; Graphite; Carbon; High-Temperature Alloy; Magnesium; Plastic; Stainless Steel; Titanium; Tool Steel; Zinc Alloy
Neck length0.3900
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square size0.1520
Tapping depth0.8750
Tapping depth frac in7/8
Threads per inch24
Thread directionRight Hand
Thread length0.5000
Thread limitH3
Thread size in#10-24
Thread standardUNC
