Guhring

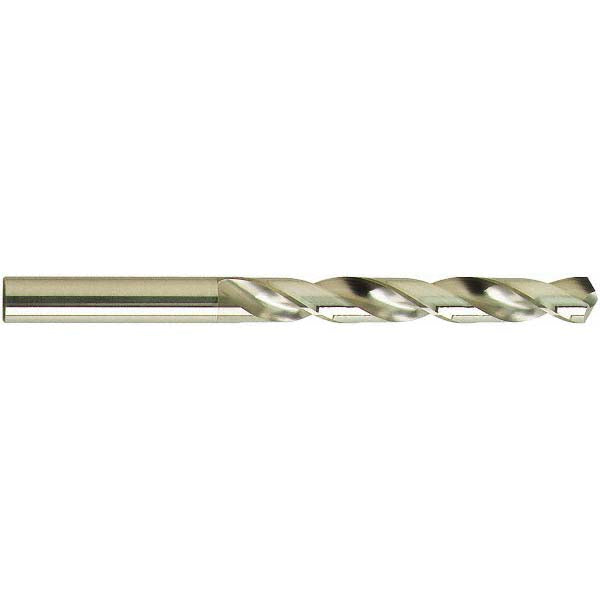

#44 High Speed Steel Drill Bit, 118° point - Guhring 9002050021800
MFR# 9002050021800Series 205
$2.16List $2.73
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9002050021800 is a #44 High Speed Steel drill bit, 118° point. Suited for cast iron, steel. Series 205.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit materialHigh Speed Steel
Drill bit size0.0858
Drill bit size range0.0500 - 0.1000
Drill bit size wire#44
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)27.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth0.9340
Number of flutes2
Overall length (mm)53.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.0858
Shank length (mm)26.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
