Guhring

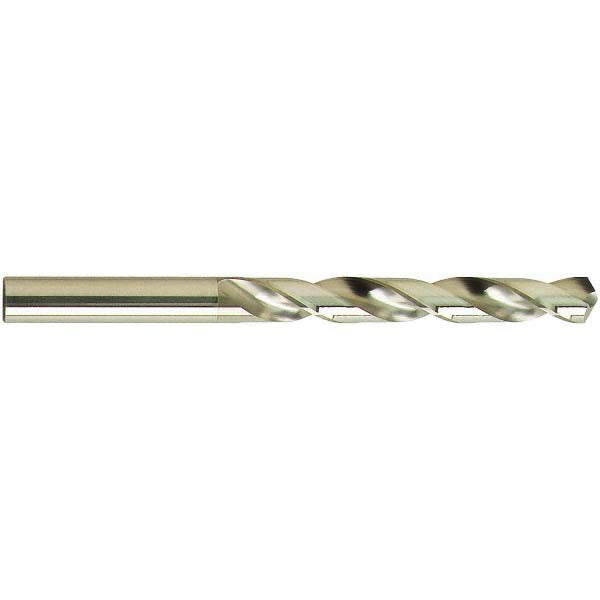

9/64" High Speed Steel Drill Bit, Oxide, 118° point - Guhring 9002050035700
MFR# 9002050035700Series 205
$2.37List $3.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
Description
The Guhring 9002050035700 is a 9/64" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. Series 205.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill bit size wire#28
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)39.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.3250
Number of flutes2
Overall length (mm)70.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in9/64
Shank length (mm)31.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
