Guhring

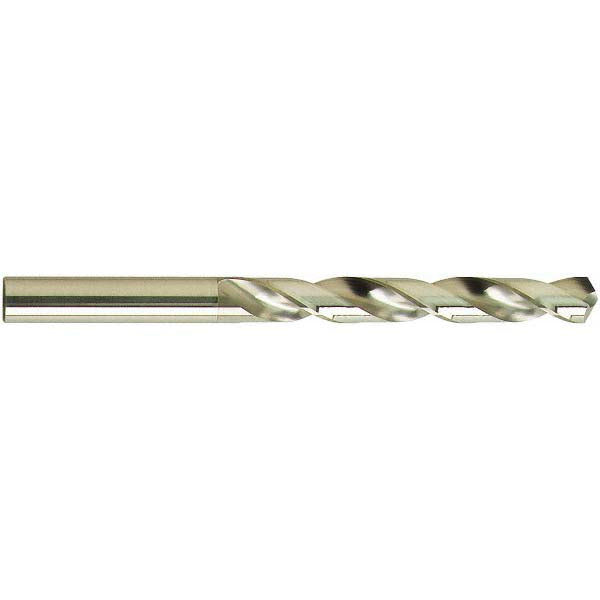

33/64" High Speed Steel Drill Bit, Oxide, 118° point - Guhring 9002050131000
MFR# 9002050131000
$27.14List $34.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Description
The Guhring 9002050131000 is a 33/64" High Speed Steel drill bit with a Oxide finish, 118° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size in33/64
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)101.00
Flute typeSpiral
Material gradeM2
Overall length (mm)151.00
Point typeStandard
Shank diameter in33/64
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
