Guhring

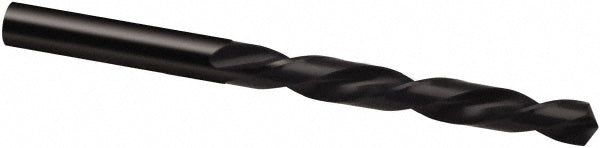

0.1575" High Speed Steel Drill Bit, 118° point - Guhring 9002080040000
MFR# 9002080040000Series 208
$5.54List $6.98
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9002080040000 is a 0.1575" High Speed Steel drill bit, 118° point. Suited for cast iron, steel. Series 208.
Specifications
Coolant throughNo
Cutting directionLeft Hand
Drill bit diameter toleranceh8
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1575
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)43.00
Flute typeSpiral
Maximum drilling depth1.4570
Number of flutes2
Overall length (mm)75.00
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter0.1575
Shank length (mm)32.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
