Guhring
1/32" High Speed Steel Drill Bit, 118° point - Guhring 9002170007900
MFR# 9002170007900Series 217
$9.46List $11.93
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/32
Description

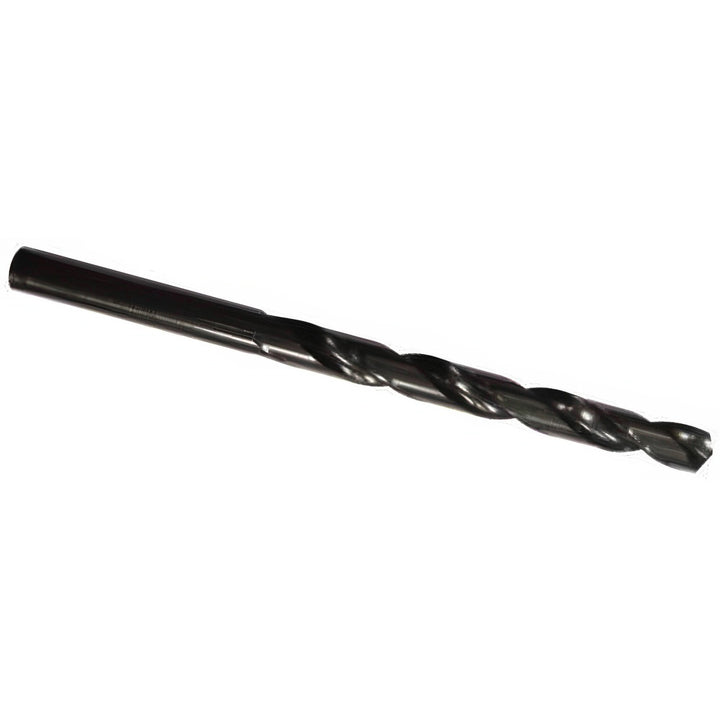

The Guhring 9002170007900 is a 1/32" High Speed Steel drill bit, 118° point. Series 217.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit size in1/32
Drill bit size wire#68
Drill point angle degrees118
Flute length (mm)25.00
Flute length x diameter ratio10xD
Flute typeSpiral
Material gradeM-2
Maximum drilling depth0.9380
Overall length (mm)46.00
Point typeStandard
Shank diameter in1/32
Shank length (mm)21.00
Shank typeCylindrical
Specification numberDIN 340
Spiral typeRegular
StandardsDIN 340
Threaded shankNo
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
