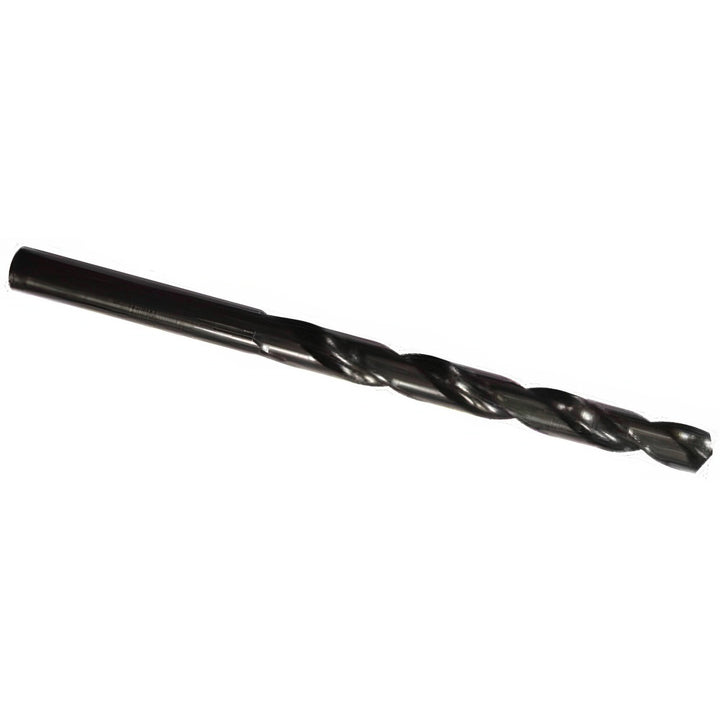

11/16" High Speed Steel Drill Bit, Oxide, 118° point - Guhring 9002170174600
MFR# 9002170174600Series 217
$67.94List $87.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/16
CoatingOxide
Description
The Guhring 9002170174600 is a 11/16" High Speed Steel drill bit with a Oxide finish, 118° point. Series 217.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit size in11/16
Drill point angle degrees118
Flute length (mm)158.00
Flute length x diameter ratio10xD
Flute typeSpiral
Material gradeM-2
Overall length (mm)241.00
Point typeStandard
Shank diameter in11/16
Shank typeStraight
Specification numberDIN 340
Spiral typeRegular
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
