Guhring

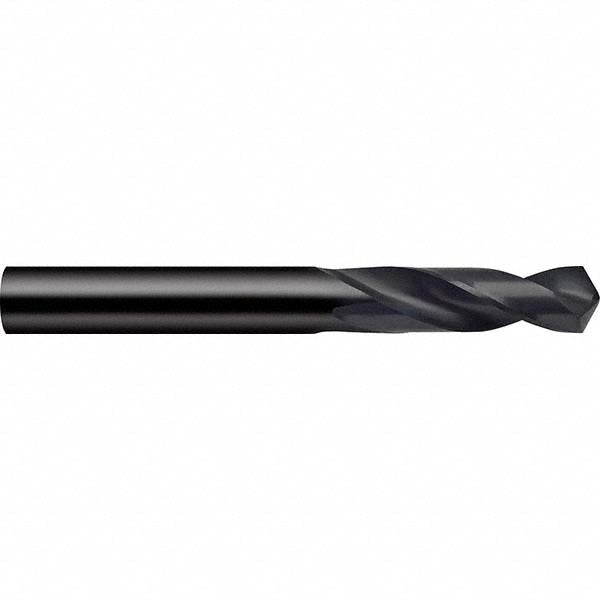

#46 HSS Drill Bit, 118° point - Guhring 9002230020600
MFR# 9002230020600Series 223
$2.10List $2.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9002230020600 is a #46 HSS drill bit, 118° point. Suited for brass, cast iron, steel. Series 223.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0810
Drill bit size range0.0000 to 0.1000
Drill bit size wire#46
Drill point angle118
Flute length (mm)12.00
Flute typeRegular Spiral
Number of flutes2
Overall length1.4961
Point typeStandard
Primary workpiece materialBrass; Cast Iron; Steel
Shank diameter0.0811
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialHSS
Web configurationParallel
Web thinningWeb-Thinned
