Guhring

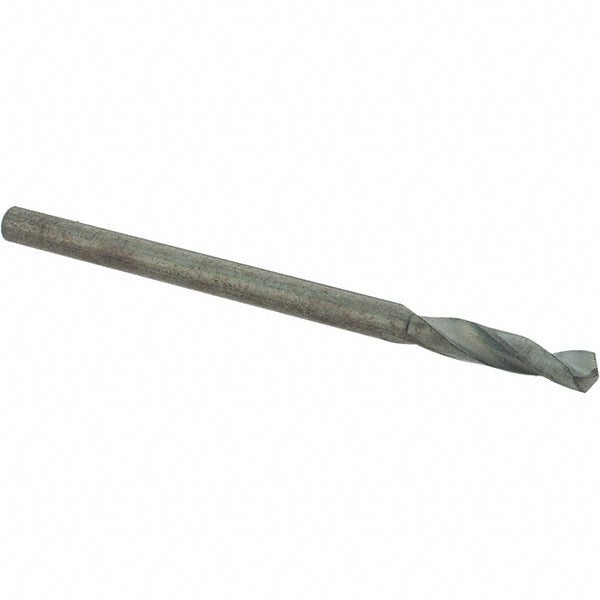

#42 HSS Stub Drill Bit, Oxide, 118° point - Guhring 9002230023700
MFR# 9002230023700Series 223
$2.10List $2.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Guhring 9002230023700 is a #42 HSS Stub drill bit with a Oxide finish, 118° point. Suited for steel, cast iron. Series 223.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0935
Drill bit size range0.0000 to 0.1000
Drill bit size wire#42
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)14.00
Flute typeRegular Spiral
Material gradeM2
Maximum drilling depth0.4110
Number of flutes2
Overall length1.6929
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Shank diameter0.0933
Shank length1.1417
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHSS
Web configurationTapered
Web thinningWeb-Thinned
