Guhring

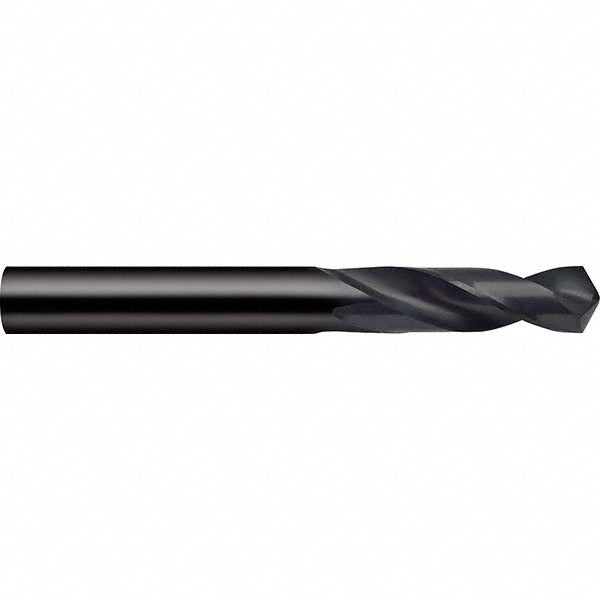

7/64" HSS Stub Drill Bit, Oxide, 118° point - Guhring 9002230027900
MFR# 9002230027900Series 223
$2.10List $2.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/64
Flutes2
CoatingOxide
Description
The Guhring 9002230027900 is a 7/64" HSS Stub drill bit with a Oxide finish, 118° point. Series 223.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size in7/64
Drill bit size range0.1000 to 0.1500
Drill bit size wire#35
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)16.00
Flute typeRegular Spiral
Material gradeM2
Number of flutes2
Overall length1.8110
Point typeStandard
Shank diameter0.1098
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialHSS
Web configurationTapered
