Guhring

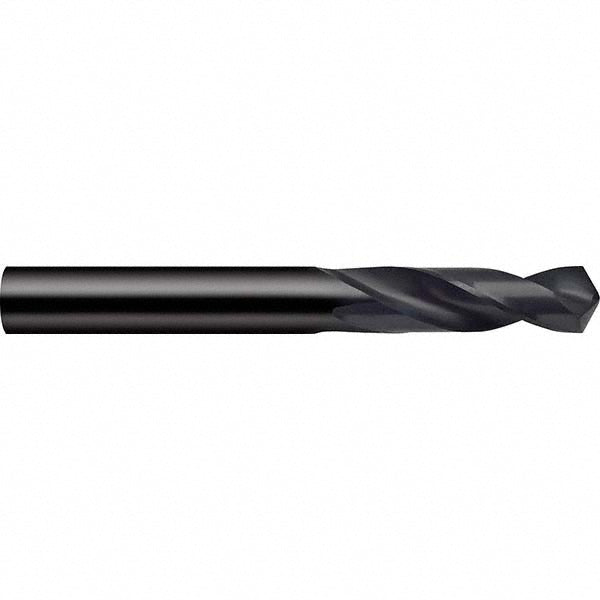

0.3996" HSS Stub Drill Bit, Oxide, 118° point - Guhring 9002230101500
MFR# 9002230101500Series 223
$39.06List $50.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Guhring 9002230101500 is a 0.3996" HSS Stub drill bit with a Oxide finish, 118° point. Series 223.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit size0.3996
Drill bit size range0.3500 to 0.4000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)43.00
Flute typeRegular Spiral
Material gradeM2
Number of flutes2
Overall length3.5039
Point typeStandard
Shank diameter0.3996
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialHSS
Web configurationTapered
