Guhring

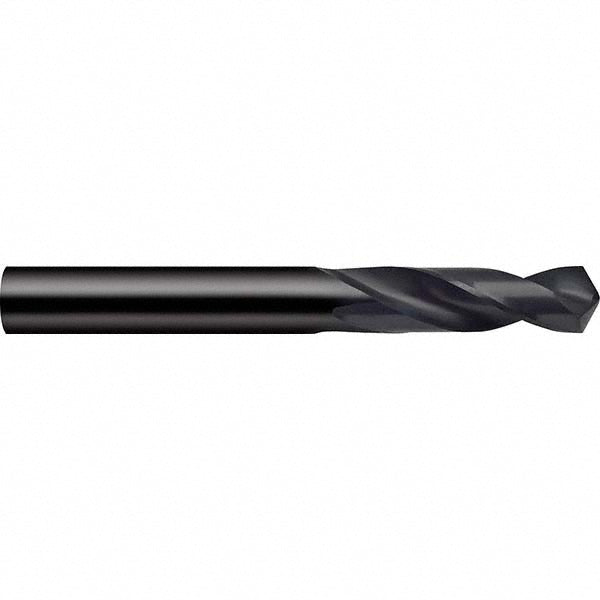

0.5512" High-Speed Steel Stub Drill Bit, Oxide, 118° point - Guhring 9002230140000
MFR# 9002230140000Series 223
$34.04List $43.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description
The Guhring 9002230140000 is a 0.5512" High-Speed Steel Stub drill bit with a Oxide finish, 118° point. Series 223.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit size0.5512
Drill bit size range0.5000 to 0.6000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)54.00
Flute typeSpiral
Material gradeM2
Overall length4.2126
Point typeStandard
Shank diameter0.5512
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialHigh-Speed Steel
Web configurationTapered
