Guhring
0.3937" HSS Drill Bit, 118° point - Guhring 9002240100000
MFR# 9002240100000Series 224
$27.31List $35.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

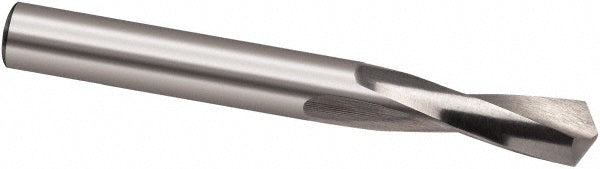

The Guhring 9002240100000 is a 0.3937" HSS drill bit, 118° point. Series 224.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit size0.3937
Drill bit size range0.3500 to 0.4000
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)43.00
Flute typeSlow Spiral
Material gradeM2
Number of flutes2
Overall length3.5039
Point typeCone Relief
Shank diameter0.3937
Shank typeStraight
Specification designationDIN
Spiral typeSlow
Tool materialHSS
Web thinningWeb-Thinned
