Guhring

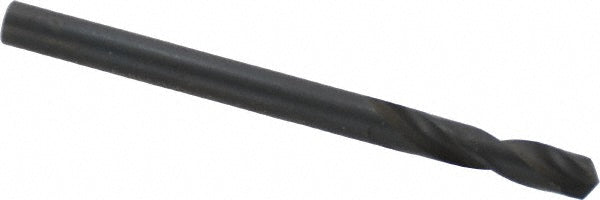

1/8" Cobalt Drill Bit, Oxide, 118° point - Guhring 9003050031700
MFR# 9003050031700Series 305
$4.34List $5.46
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
Description
The Guhring 9003050031700 is a 1/8" Cobalt drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. Series 305.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingOxide
Drill bit materialCobalt
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Maximum drilling depth1.2300
Number of flutes2
Overall length (mm)65.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in1/8
Shank length (mm)29.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
