Guhring

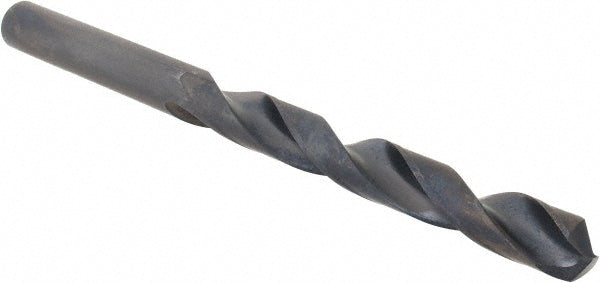

Letter Q Cobalt Drill Bit, Oxide, 118° point - Guhring 9003050084300
MFR# 9003050084300Series 305
$19.55List $24.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9003050084300 is a Letter Q Cobalt drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. Series 305.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingOxide
Drill bit materialCobalt
Drill bit size0.3319
Drill bit size letterQ
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)75.00
Flute typeSpiral
Maximum drilling depth2.4550
Number of flutes2
Overall length (mm)117.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3319
Shank length (mm)42.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
