Guhring

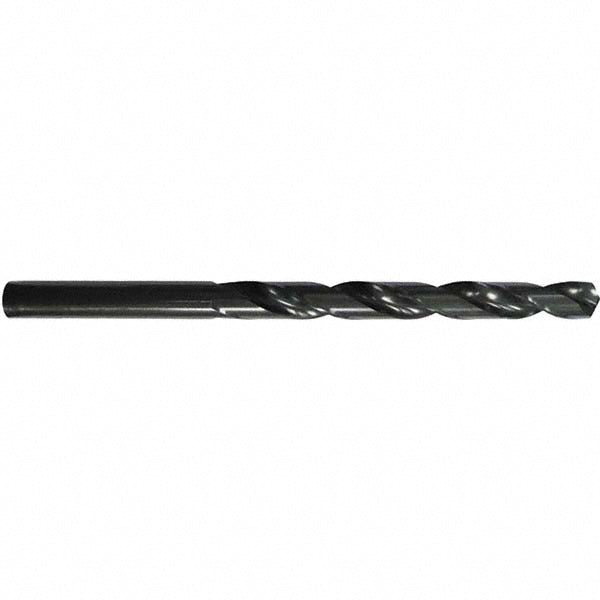

0.1181" HSS-E Cobalt Drill Bit, Black Oxide, 118° point - Guhring 9003170030000
MFR# 9003170030000Series 317
$10.85List $13.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingBlack Oxide
Description
The Guhring 9003170030000 is a 0.1181" HSS-E Cobalt drill bit with a Black Oxide finish, 118° point. Series 317.
Specifications
Coating finishBlack Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.1181
Drill point angle degrees118
Flute length2.5984
Flute length x diameter ratio10xD
Flute typeSpiral
Maximum drilling depth2.5984
Overall length (mm)100
Point typeStandard
Shank diameter0.1181
Shank length1.3386
Shank typeStraight-Cylindrical
Tool materialHSS-E Cobalt
Web configurationTapered
Web thinningWeb-Thinned
