Guhring
0.0610" Cobalt Stub Drill Bit, 130° point - Guhring 9003290015500
MFR# 9003290015500Series 329
$7.40List $9.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

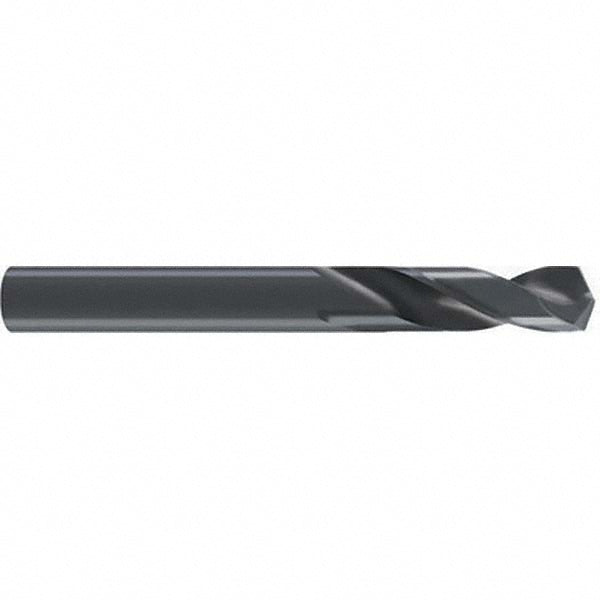

The Guhring 9003290015500 is a 0.0610" Cobalt Stub drill bit, 130° point. Series 329.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0610
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length0.3937
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.3937
Number of flutes2
Overall length1.3386
Point typeStandard
Shank diameter0.0610
Shank length0.9449
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialCobalt
Web configurationTapered
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
