Guhring

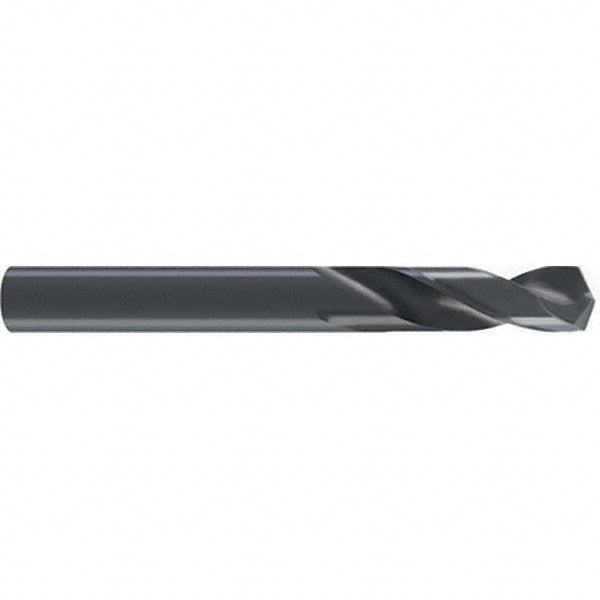

0.0827" Cobalt Stub Drill Bit, 130° point - Guhring 9003290021000
MFR# 9003290021000Series 329
$4.20List $5.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9003290021000 is a 0.0827" Cobalt Stub drill bit, 130° point. Series 329.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0827
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length0.4724
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth0.4724
Number of flutes2
Overall length1.4961
Point typeCone Relief
Shank diameter0.0827
Shank length1.0236
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialCobalt
Web configurationTapered
