Guhring

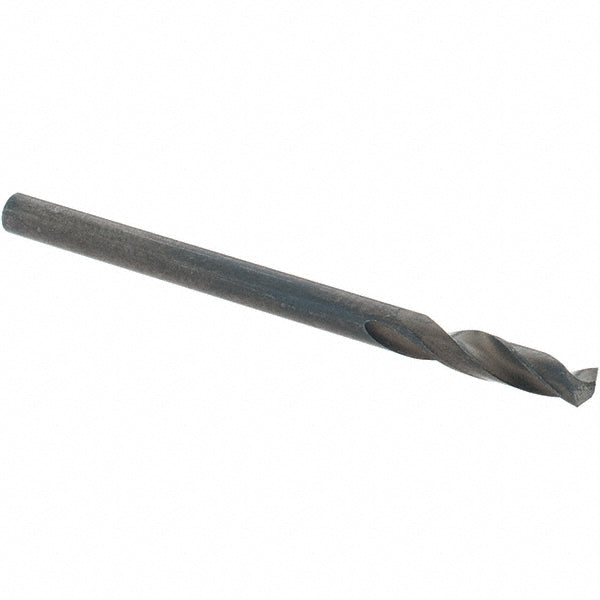

0.1043" Cobalt Stub Drill Bit, Coated, 130° point - Guhring 9003290026500
MFR# 9003290026500Series 329
$8.46List $10.85
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9003290026500 is a 0.1043" Cobalt Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 329.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.1043
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle130
Drill tip finish coatingOxide
Flute by diameter ratio3xD
Flute length0.5512
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.5512
Number of flutes2
Overall length1.6929
Point typeStandard
Primary workpiece materialTitanium Alloy
Shank diameter (mm)2.65
Shank length1.1417
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
