Guhring

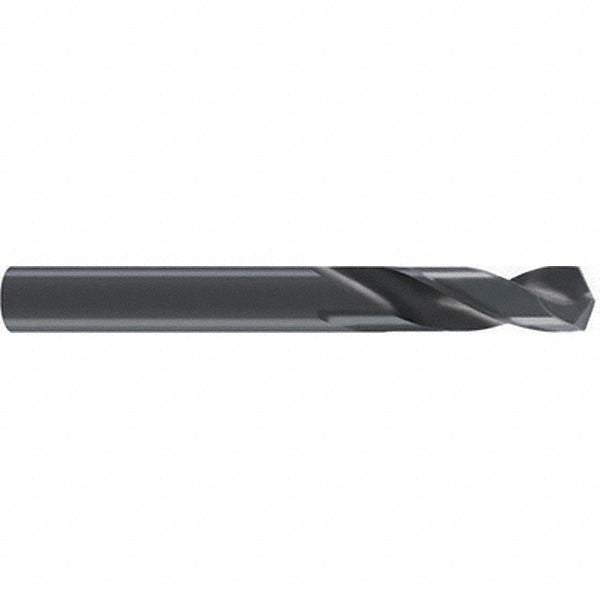

0.1181" Cobalt Stub Drill Bit, Oxide, 130° point - Guhring 9003290030000
MFR# 9003290030000Series 329
$4.61List $5.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Guhring 9003290030000 is a 0.1181" Cobalt Stub drill bit with a Oxide finish, 130° point. Suited for steel, stainless steel, cast iron, high-temp alloy. Series 329.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.1181
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle130
Drill tip finish coatingOxide
Flute by diameter ratio3xD
Flute length0.6299
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth0.6299
Number of flutes2
Overall length1.8110
Point typeCone Relief
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Shank diameter0.1181
Shank length1.1811
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
