Guhring

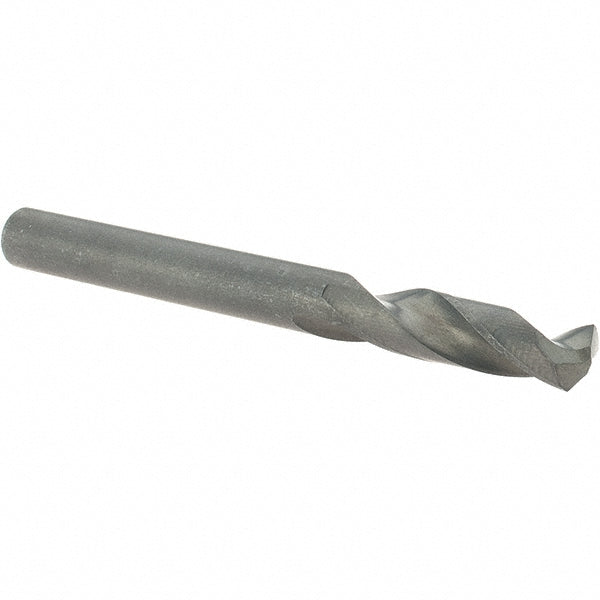

0.2402" Cobalt Stub Drill Bit, Coated, 130° point - Guhring 9003290061000
MFR# 9003290061000Series 329
$16.41List $21.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9003290061000 is a 0.2402" Cobalt Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 329.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size0.2402
Drill bit size range0.2000 to 0.2500
Drill length typeStub
Drill point angle130
Drill tip finish coatingOxide
Flute by diameter ratio3xD
Flute length1.2205
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.2205
Number of flutes2
Overall length2.7559
Point typeStandard
Primary workpiece materialTitanium Alloy
Shank diameter (mm)6.10
Shank length1.5354
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
