Guhring

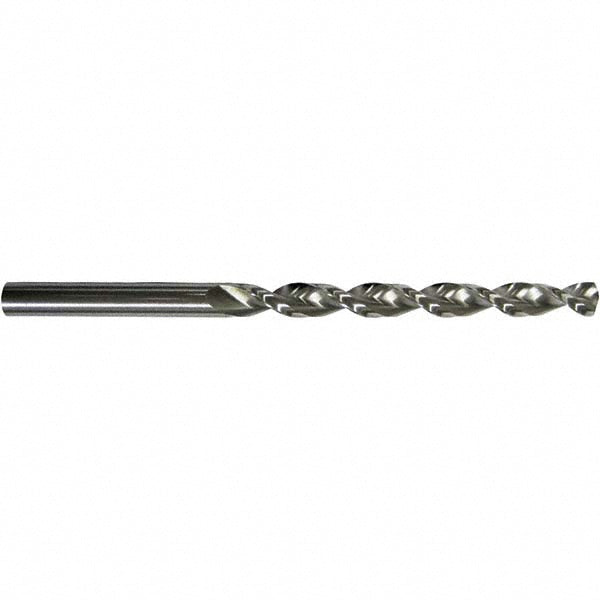

0.2638" High Speed Steel Drill Bit, 130° point - Guhring 9005010067000
MFR# 9005010067000Series 501
$43.22List $54.46
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Guhring 9005010067000 is a 0.2638" High Speed Steel drill bit, 130° point. Series 501.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size0.2638
Drill point angle degrees130
Flute length3.8189
Flute length x diameter ratio10xD
Flute typeParabolic
Material gradeM-2
Maximum drilling depth3.8189
Overall length (mm)148.00
Point typeStandard
Shank diameter0.2638
Shank length2.0079
Shank typeCylindrical
Specification numberDIN 340
StandardsDIN 340
Threaded shankNo
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
