Guhring

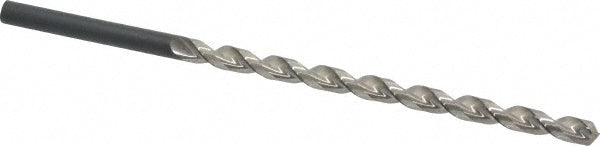

7/16" High Speed Steel Drill Bit, 130° point - Guhring 9005020111100
MFR# 9005020111100Series 502
$165.42List $208.47
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
Description
The Guhring 9005020111100 is a 7/16" High Speed Steel drill bit, 130° point. Suited for aluminum. 7-11/16 flute length. Series 502.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size in7/16
Drill point angle130
Flute by diameter ratio15xD
Flute length in7-11/16
Flute typeParabolic
Maximum drilling depth7.0210
Number of flutes2
Overall length11.0240
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in7/16
Shank length (mm)85.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1869
StandardsDIN 1869
Tool applicationDeep Hole Drilling
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
