Guhring

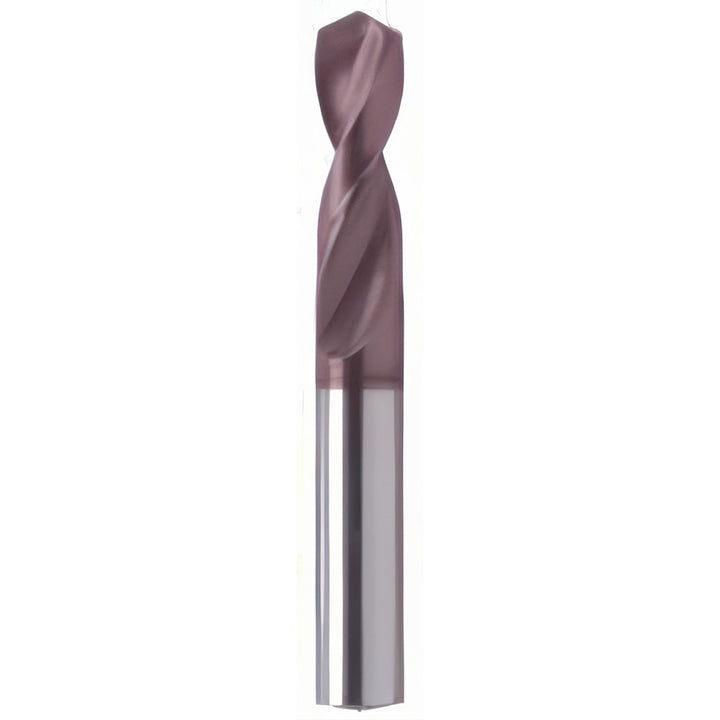

#32 Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9005150029500
MFR# 9005150029500Series 515
$12.90List $16.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9005150029500 is a #32 Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for cast iron, steel. Series 515.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.1160
Drill bit size range0.1000 to 0.1500
Drill bit size wire#32
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length0.6299
Flute typeParabolic
Maximum drilling depth0.4560
Number of flutes2
Overall length1.8110
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeFast
StandardsDIN 1897
Tool materialPowdered Metal
Web thinningWeb-Thinned
