Guhring

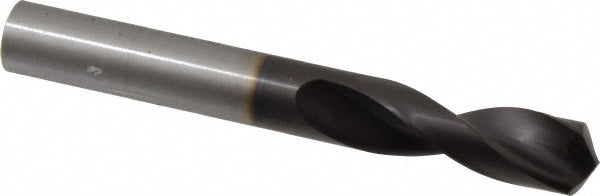

31/64" Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9005150123000
MFR# 9005150123000Series 515
$85.78List $108.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size31/64
Flutes2
CoatingCoated
Description
The Guhring 9005150123000 is a 31/64" Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for cast iron, steel. Series 515.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit size in31/64
Drill bit size range0.4500 to 0.5000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length2.0080
Flute typeParabolic
Material gradePMASP60
Maximum drilling depth1.2810
Number of flutes2
Overall length4.0160
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialPowdered Metal
Web configurationParallel
Web thinningWeb-Thinned
