Guhring

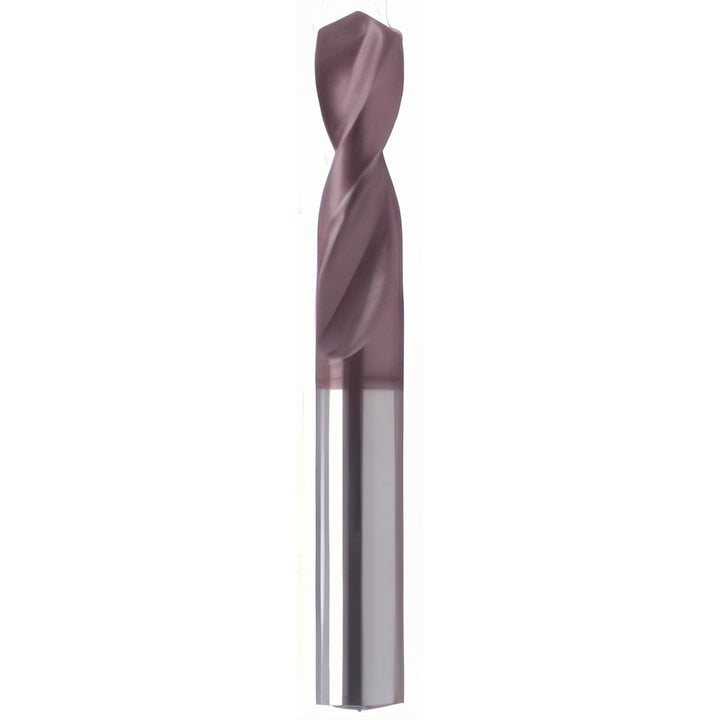

33/64" Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9005150131000
MFR# 9005150131000Series 515
$97.85List $125.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Flutes2
CoatingCoated
Description
The Guhring 9005150131000 is a 33/64" Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for cast iron, steel. Series 515.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size in33/64
Drill bit size range0.5000 to 0.6000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length2.0079
Flute typeParabolic
Maximum drilling depth1.2340
Number of flutes2
Overall length4.0157
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeFast
StandardsDIN 1897
Tool materialPowdered Metal
Web thinningWeb-Thinned
