Guhring

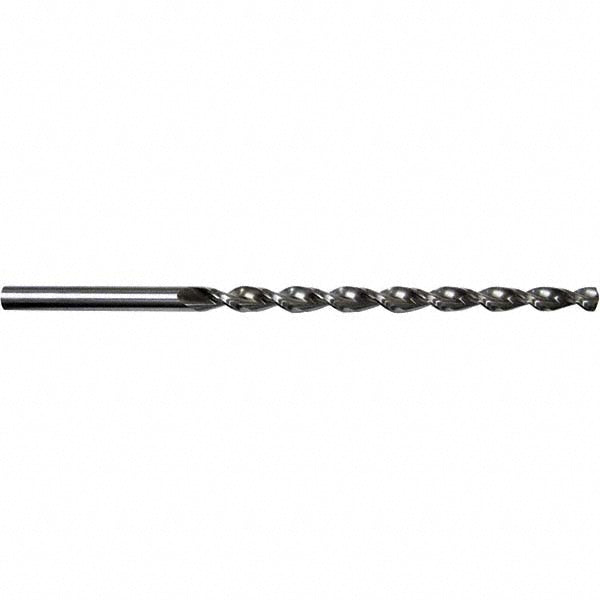

1/8" High Speed Steel Drill Bit, 130° point - Guhring 9005240031700
MFR# 9005240031700Series 524
$33.37List $42.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
Description
The Guhring 9005240031700 is a 1/8" High Speed Steel drill bit, 130° point. Suited for aluminum. Series 524.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in1/8
Drill point angle130
Flute by diameter ratio16xD
Flute length4.1339
Flute typeParabolic
Material gradeM2
Maximum drilling depth4.1339
Number of flutes2
Overall length (mm)155.00
Point typeChisel Point
Primary workpiece materialAluminum
Secondary workpiece materialSteel
Shank diameter in1/8
Shank length1.9685
Shank typeStraight-Cylindrical
Specification designationDIN
StandardsDIN 1869
Tool applicationDeep Hole Drilling
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
