Guhring

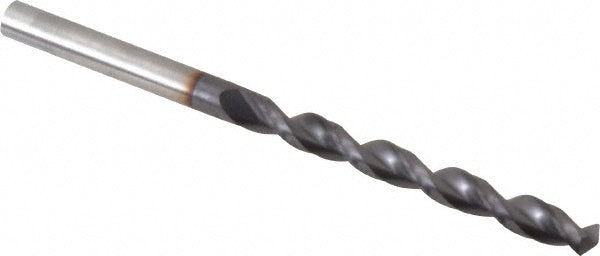

7/32" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300055600
MFR# 9005300055600Series 530
$23.82List $30.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
Flutes2
Description
The Guhring 9005300055600 is a 7/32" Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. Series 530.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingFIREX
Drill bit materialPowdered Metal
Drill bit size in7/32
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)57.00
Flute typeParabolic
Material gradePM-ASP-60
Maximum drilling depth1.9160
Number of flutes2
Overall length (mm)93.00
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter in7/32
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
