Guhring

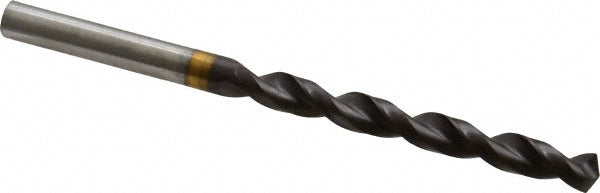

17/64" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300067500
MFR# 9005300067500Series 530
$30.02List $37.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
Description
The Guhring 9005300067500 is a 17/64" Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. Series 530.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingFIREX
Drill bit gradeHigh Performance
Drill bit materialPowdered Metal
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)63.00
Flute typeParabolic
Material gradePM-ASP-60
Maximum drilling depth2.3180
Number of flutes2
Overall length (mm)101.00
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter in17/64
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
