Guhring

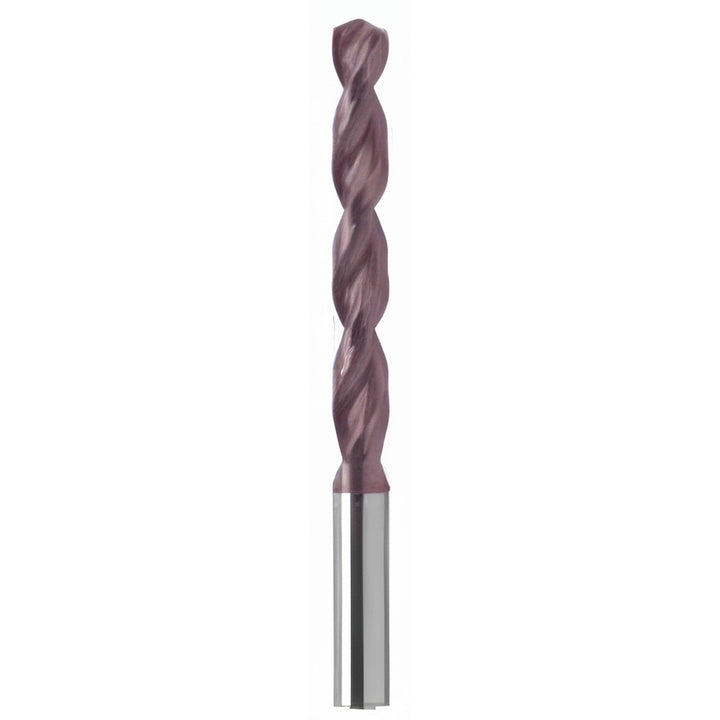

Letter R Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300086100
MFR# 9005300086100Series 530
$45.61List $58.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005300086100 is a Letter R Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. Series 530.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingFIREX
Drill bit materialPowdered Metal
Drill bit size0.3390
Drill bit size letterR
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.1900
Flute typeParabolic
Maximum drilling depth2.6810
Number of flutes2
Overall length4.9200
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)8.61
Shank length (mm)44.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeFast
StandardsDIN 338
Tool performanceHigh Performance
Web thinningWeb-Thinned
