Guhring
#52 High Speed Steel Drill Bit, 130° point - Guhring 9005490016100
MFR# 9005490016100Series 549
$7.62List $9.61
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

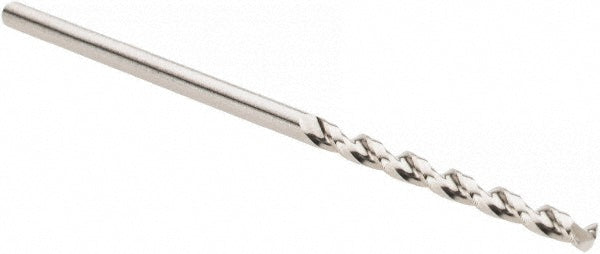

The Guhring 9005490016100 is a #52 High Speed Steel drill bit, 130° point. Suited for aluminum. 25/32 flute length, 1-11/16 overall length. Series 549.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.014 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.0635
Drill bit size range0.0500 - 0.1000
Drill bit size wire#52
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in25/32
Flute typeParabolic
Maximum drilling depth0.6930
Number of flutes2
Overall length in1-11/16
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.0634
Shank length (mm)23.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
