Guhring

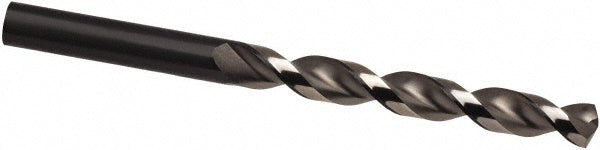

0.2106" HSS Drill Bit, 130° point - Guhring 9005490053500
MFR# 9005490053500Series 549
$19.48List $24.55
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005490053500 is a 0.2106" HSS drill bit, 130° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 549.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.2106
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length2.2441
Flute typeParabolic
Maximum drilling depth2.3125
Number of flutes2
Overall length3.6614
Point typeCone Relief
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2344
Shank length (mm)36
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 338
Web thinningWeb-Thinned
